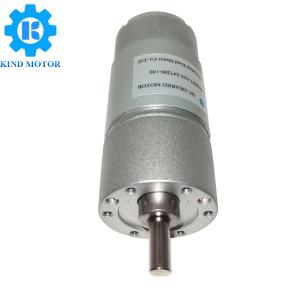

Low Noise Micro DC Motor Low Rpm 12 Volt High Torque 1.2Nm

Product Categories

Shenzhen Kind Motor Co., Ltd.

Contact Now

Low Noise Micro DC Motor Low Rpm 12 Volt High Torque 1.2Nm

Name: Low Noise Micro DC Motor Low Rpm 12 Volt High Torque 12Nm
Brand: Kind Motor
Price: 3 USD

China Low Noise Micro DC Motor Low Rpm 12 Volt High Torque 1.2Nm wholesale

Brand Name : Kind Motor

Model Number : KGM37-555

Certification : ISO9001/RoHS/CE

Place of Origin : China

MOQ : 500pcs

Price : $3-$6/PCS

Payment Terms : L/C, D/A, D/P, T/T,Paypal, Western Union

Supply Ability : 500000/Month

Delivery Time : 1-6 weeks

Packaging Details : Expect Standard Carton and Foam

Voltage(v) : 5volt～36volt

Speed(rpm) : 2rpm-2000rpm

Gears material : Stainless steel

Brush Type : Brushes /Brushless

Type : DC Geared Motors

Rated Torque : ≤1.2Nm

Stall Torque : ≤2Nm

Continuous current(a) : ≤21A

Output power : ≤31W

Weight : 410g

Contact Now

High torque low noise GM37-555 37mm dc 6v 12v 24v dc gear motor with

encoder

Product introduction

This is High torque low noise GM37-555 37mm dc 6v 12v 24v dc gear motor with encoder,

the spur gearbox can with many different size motors,the brush motor have RS385 RS395

RF500 RF520 RS540 RS545 RS550 RS555,the motors have different size and parameters,

the motors can with 12cpr and 16cpr encoder.

Brand:Kind Motor

Model	KGM37-555
Gears Material	All Metal
Gearbox Reduction ratio	10/1 ～810/1
Motor model	RS395 Brushes Motor (length is 47mm) RS545 Brushes Motor (length is 50mm) RS555 Brushes Motor (length is 57mm)
Brush Type	Carbon-brushed
Voltage	5.0 vdc,6.0 vdc,7.4 vdc,9.0 vdc,12.0 vdc,24.0 vdc
Speed	2 rpm ～2000 rpm
Rated Torque	≤2Nm
Shaft Size	6mm D shaft
Typical Application	Smart Lock, Robot, Electric Valve,Toy,Massage instrument, Electric screwdriver,Beauty equipment,Medical industry,ATM equipment,Electric curtain,etc.

Product Parameters

█ODM & OEM

█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

KGM37-555 37mm dc 6v 12v 24v dc gear motor

Low Noise Micro DC Motor Low Rpm 12 Volt High Torque 1.2Nm

KGM37-395 37mm dc 6v 12v 24v dc gear motor

Low Noise Micro DC Motor Low Rpm 12 Volt High Torque 1.2Nm
